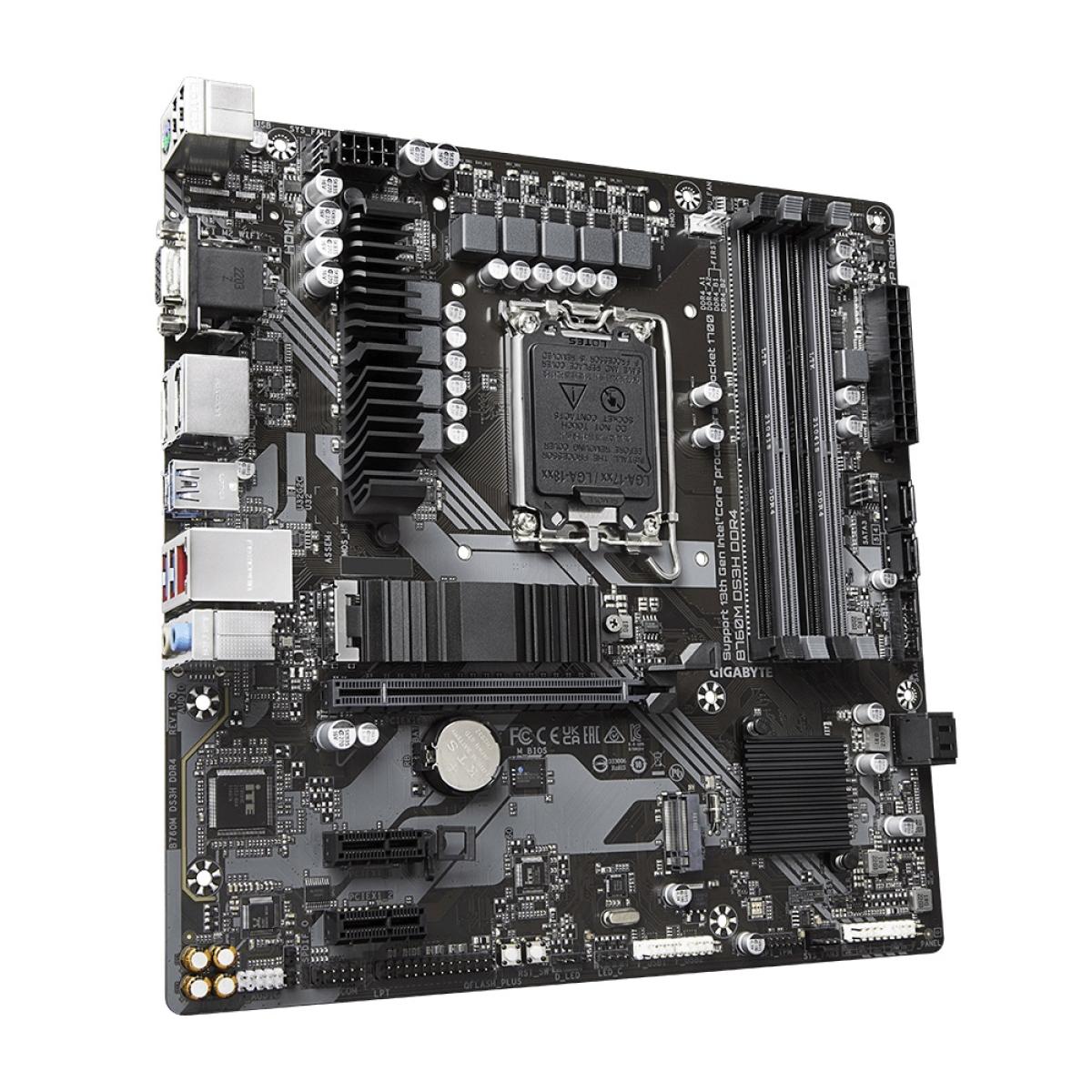

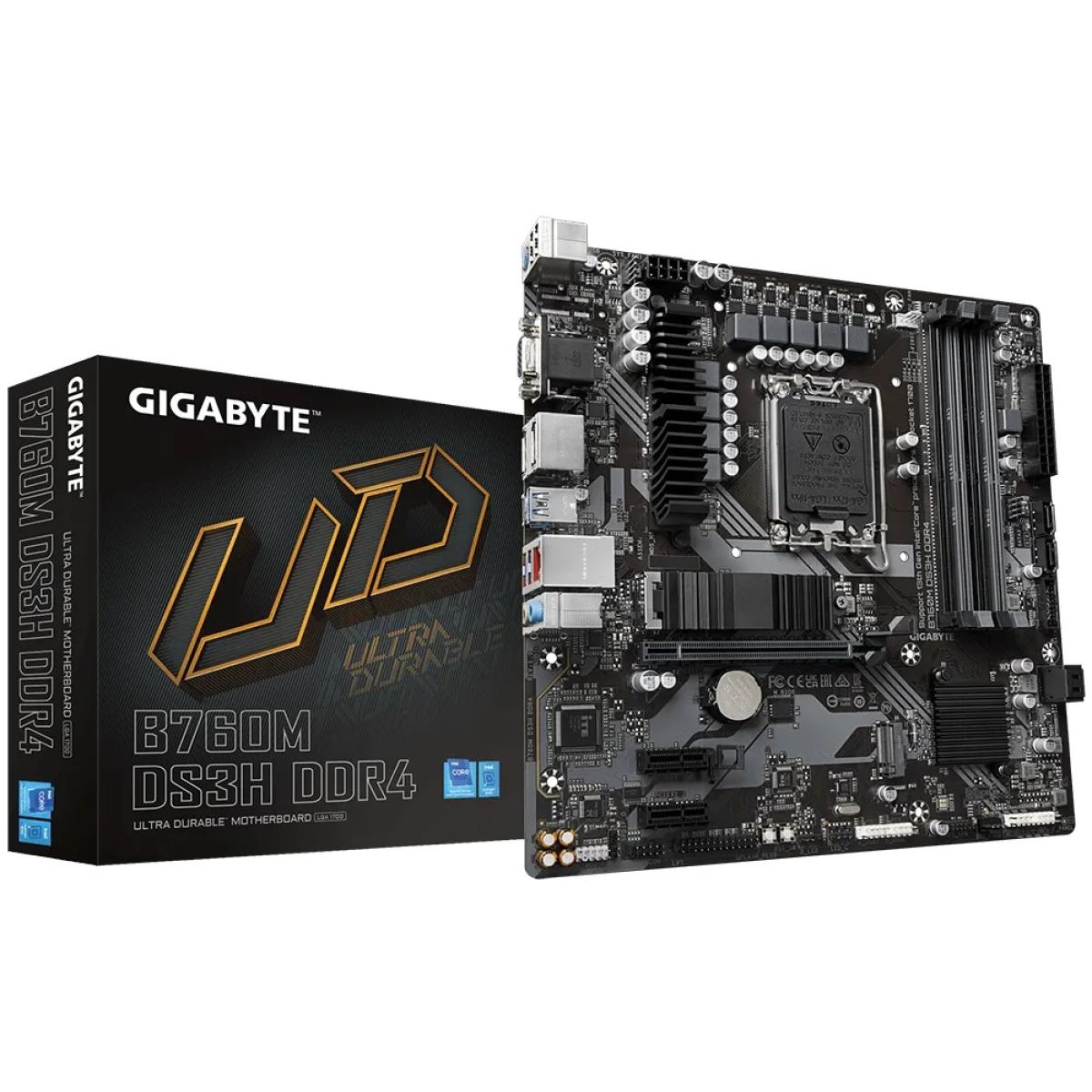

GIGABYTE B760M DS3H, Intel 13th 12th Series, LGA 1700/DDR4- mATX Mothe

GIGABYTE B760M DS3H, Intel 13th 12th Series, LGA 1700/DDR4- mATX MotherBoard

Sold out

0.000 JOD 119.000 JOD

Sale 0%

In stock Low stock Out of stock : 0 left

bac_1234MotherboardSpecifications SupportedProcessors LGA1700socket:Supportforthe13thand12thGenerationIntel®Core™Pentium®GoldandCeleron®ProcessorsL3cachevarieswithCPU Chipset Intel®B760ExpressChipset Socket LGA1700 MemoryType DDR4 MemorySlots 4 MaximumMemory 128GB MemoryBusSpeed SupportforDDR45333(O.C.)/5133(O.C.)/5000(O.C.)/4933(O.C.)/4800(O.C.)/4700(O.C.)/4600(O.C.)/4500(O.C.)/4400(O.C.)/4300(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3666(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200/3000/2933/2666/2400/2133MT/smemorymodules4xDDRDIMMsocketssupportingupto128GB(32GBsingleDIMMcapacity)ofsystemmemoryDualchannelmemoryarchitectureSupportforECCUn-bufferedDIMM1Rx8/2Rx8memorymodules(operateinnon-ECCmode)Supportfornon-ECCUn-bufferedDIMM1Rx8/2Rx8/1Rx16memorymodulesSupportforExtremeMemoryProfile(XMP)memorymodules Ports 2xUSB2.0/1.1ports1xPS/2keyboard/mouseport1xD-Subport1xHDMIport2xDisplayPorts3xUSB3.2Gen1ports1xUSBType-C®portwithUSB3.2Gen2support1xRJ-45port3xaudiojacks FormFactor mATX M.2Slots Yes ExpansionSlots CPU:1xPCIExpressx16slotsupportingPCIe4.0andrunningatx16Chipset:2xPCIExpressx1slotssupportingPCIe3.0andrunningatx1

وصف المنتج كامل

Motherboard Specifications
Supported Processors	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™ Pentium® Gold and Celeron® Processors L3 cache varies with CPU
Chipset	Intel® B760 Express Chipset
Socket	LGA1700
Memory Type	DDR4
Memory Slots	4
Maximum Memory	128GB
Memory Bus Speed	Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Ports	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
Form Factor	mATX
M.2 Slots	Yes
Expansion Slots	CPU: 1 x PCI Express x16 slot supporting PCIe 4.0 and running at x16 Chipset: 2 x PCI Express x1 slots supporting PCIe 3.0 and running at x1
